MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Name: MCX Female RF Coaxial Connector Microstrip Threaded Mount
Brand: SIPU
Price: 1 USD

China MCX Female RF Coaxial Connector – Microstrip, Threaded Mount wholesale

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 50

Payment Terms : L/C, T/T, Western Union

Model Number : MCX-KYD27

Certification : ISO9001-2017, RoHS, CE

Packaging Details : master carton

Price : Discuss

Delivery Time : 5-8Weeks

Product name : MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

Contact Now

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Product Overview

The MCX connector features a push-in connection structure, offering quick and convenient mating along with compact size, reliable contact, and excellent electrical performance. It is widely used in microwave communication, GPS systems, and military applications where space, speed, and performance are critical.

Applications

Antennas

Base stations

GPS systems

Instrumentation

Weapon systems

Product Features

Threaded mounting structure, typically installed within a cavity

Compact and lightweight design

Fast and secure connection

Stable electrical performance in high-frequency environments

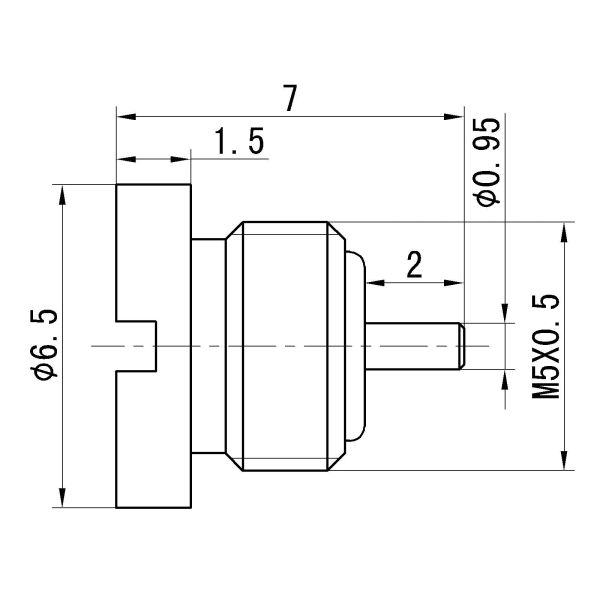

Product Specifications

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Important Technical Parameters

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-6GHz
Dielectric withstanding voltage		750V	VSWR	≤1.3
Insulation resistance		≥1000MΩ	Insertion loss	≤0.1√F(GHz)dB
Contact resistance	Center conductor	≤5.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.5mΩ	Durability	500Times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

Product Image Gallery

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount -
