Microstrip Coaxial Female SSMA RF Connector Flange Mounted

Name: Microstrip Coaxial Female SSMA RF Connector Flange Mounted
Brand: SIPU
Price: 1 USD

China Microstrip Coaxial Female SSMA RF Connector Flange Mounted wholesale

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SSMA-KFD20

Certification : IOS9001-2017 RoHS

Price : Discuss

Packaging Details : Carton

Delivery Time : 6-8weeks

Supply Ability : 100000pcs/year

Product name : Two hole flange connector

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

High light : Coaxial connector

Contact Now

SSMA Female Flange Microstrip RF Coaxial Connector

Product introduction

SSMA RF coaxial connectors have the advantages of small size, superior mechanical and electrical properties, and high reliability, and are widely used in aviation, aerospace, microwave communication and other fields.
Applications: test instruments, base stations, electronic components, telecommunication systems, etc.
Product features: two-hole flange mounted microstrip socket, microstrip size φ0.9×2, high reliability, excellent electrical performance, small size, easy installation, etc.

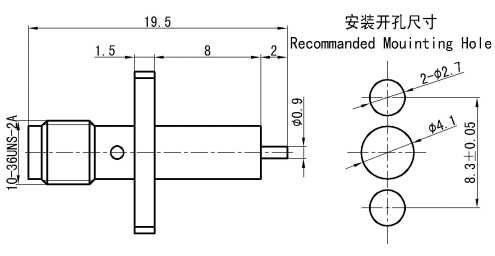

Product appearance

Microstrip Coaxial Female SSMA RF Connector Flange Mounted

Important technical parameter

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-30GHz
Dielectric withstanding voltage		750V	VSWR	≤1.05+0.012F(GHz)
Insulation resistance		≥1000MΩ	Insertion loss	≤0.05√F(GHz)dB
Contact resistance	Center conductor	≤4.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.5mΩ	Durability	500times

Materials and surface treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

Picture display

Microstrip Coaxial Female SSMA RF Connector Flange Mounted
